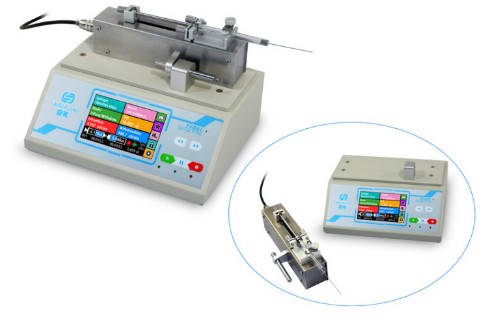

TFD01-01 Split Syringe Pump

[Lab Precision Syringe Pump]

실험실용 정밀 주사기펌프



제품 설명 [KEY FEATURES]


  • Max : 1 채널
  • 5가지 작업 모드 지원
  • 주사기 용량 : 5μL-1000μL



FEATURES

  • 컬러 LCD 디스플레이 및 터치스크린 조작
  • 직관적인 디자인으로 조작 편의성 우수
  • Max : 1 채널
  • 저소음, 무맥동
  • 지속적인 주입 가능(Continuous Infusion)
  • 정/역 방향, Full Speed, Start/Stop 가능
  • 외부제어신호로 아날로그 제어 가능
  • RS-485 통신 및 MODBUS 지원

SPECIFICATIONS / ODERING INFORMATIONS


  • Software system: LF-Toutch-GUI (standard); LF-LabComSoft computer control software (optional)
  • Syringe specification: 5μl-1000μL
  • Channel number: 1
  • Max stroke Range: 70 mm
  • Stroke resolution: 0.198 μm/step
  • linear velocity range: 0.635 um/min to 95.25 um/min
  • Linear velocity regulating resolution: 0.635 um/min
  • Linear travel accuracy: error < +/- 0.5% (30%)
  • stroke > maximum stroke
  • Linear thrust, maximum rated: > 20n
  • Thrust adjustment: 1-100% arbitrary adjustable.
  • Syringe selection: built-in syringe manufacturers, choose syringe model; Or custom syringe, direct input syringe diameter
  • Flow correction: through the calibration procedure to obtain more accurate fluid volume
  • Display: 4.3 inch color LCD, 480×272 resolution, color 65K
  • With screen display and transfusion volume, quantity of liquid, flow rate, direction, syringe specification, etc.
  • Animation display for operating status
  • Operation mode: touch screen and physical buttons
  • Power-off memory: keep saved parameters
  • Other features: pause and stop, warning tone, parameters lock
  • Fast forward and retreat quickly
  • Indicator, state signal output: one for stop state, another one for direction state
  • Control signal input: control start/stop and direction
  • Communication interface: RS485, MODBUS
  • Power supply: 90-264V AC / 20W
  • Working temperature: 5~40°C (41~104°F)
  • Working environment relative humidity: < 80% RH
  • Controller dimension: 245x195x133 mm (9.6×7.7×5.2 inch)
  • Drive dimension: 70x44x194mm (2.8×1.7×7.6 inch)
  • Weight: 3.2kg (7.0lbs)

Selection of reference (flow rate= linear speed x syringe cross-sectional area)

Syringe sizeSyringe ID(mm)Min. flow rate (μL/min)Mix .flow rate(mL/min)
5μL0.3430.0580.009
10μL0.4850.1170.017
25μL0.7280.2640.039
50μL1.030.5290.079
100μL1.4571.0580.158
250μL2.3032.6450.396
500μL3.2575.2900.793
1000μL4.60610.5801.587

APPLICATIONS


  • Perfusion of animal tissue slice
  • Flow Injection
  • In-vitro system
  • Re-circulating pump
  • Filling of bottles
